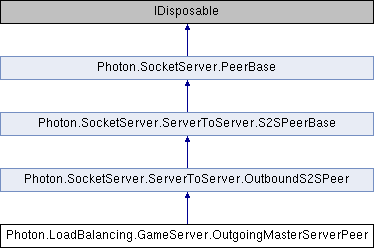

Inheritance diagram for Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer:

Public Member Functions
	OutgoingMasterServerPeer (MasterServerConnectionBase masterServerConnection)

void	UpdateServerState (FeedbackLevel workload, int peerCount, ServerState state)

void	UpdateServerState ()

Public Member Functions inherited from Photon.SocketServer.ServerToServer.OutboundS2SPeer
bool	ConnectTcp (IPEndPoint remoteEndPoint, string applicationName, bool useMux=false, IRpcProtocol protocol=null)

bool	ConnectTcp (IPEndPoint remoteEndPoint, string applicationName, object customInitObject, bool useMux=false, IRpcProtocol protocol=null)

bool	ConnectToServerUdp (IPEndPoint remoteEndPoint, string applicationName, byte numChannels, short? mtu)

bool	ConnectToServerUdp (IPEndPoint remoteEndPoint, string applicationName, object customInitObject, byte numChannels, short? mtu)

bool	ConnectToServerWebSocket (IPEndPoint remoteEndPoint, string applicationName, WebSocketVersion? webSocketVersion, IRpcProtocol protocol)

bool	ConnectToServerWebSocket (IPEndPoint remoteEndPoint, string applicationName, object customInitObject, WebSocketVersion? webSocketVersion, IRpcProtocol protocol)

bool	ConnectToServerWebSocketHixie76 (IPEndPoint remoteEndPoint, string applicationName, object customInitObject, string origin)

bool	ConnectToServerWebSocketHixie76 (IPEndPoint remoteEndPoint, string applicationName, string origin)

Public Member Functions inherited from Photon.SocketServer.ServerToServer.S2SPeerBase
SendResult	InitializeEncryption ()
	Initializes the peer to receive and send encrypted operations. More...

SendResult	SendOperationRequest (OperationRequest operationRequest, SendParameters sendParameters)
	Sends an operation request. More...

Public Member Functions inherited from Photon.SocketServer.PeerBase
void	Initialize (InitRequest initRequest)

override string	ToString ()

void	Disconnect ()
	Closes the connection. More...

void	AbortConnection ()
	Forces the connection to close immediately. Should only be used if "Disconnect" does not lead to a clean connection shutdown, e.g. in case of an overloaded connection. More...

void	Flush ()
	Flushes all pending data to the socket. More...

byte[]	InitializeEncryption (byte[] otherPartyPublicKey)
	Initializes the peer to receive and send encrypted operations with EncryptionMethod.Sha256Pkcs7. More...

byte[]	InitializeEncryption (byte[] otherPartyPublicKey, EncryptionMethod mode)
	Initializes the peer to receive and send encrypted operations. More...

SendResult	SendEvent (IEventData eventData, SendParameters sendParameters)
	Sends an IEventData object to the client. More...

SendResult	SendMessage (object message, SendParameters sendParameters)

SendResult	SendOperationResponse (OperationResponse operationResponse, SendParameters sendParameters)
	Sends the operation response to the client. More...

void	GetStats (out int roundTripTime, out int roundTripTimeVariance, out int numFailures)

void	SetDebugString (string message)

int	GetLastTouch ()

void	SetPrivateCustomTypeCache (CustomTypeCache cache)
	Sets private custom type cache. It is supposed to be used together with plugins. In other case Proptocol.TryRegisterCustomType should be used More...

void	Dispose ()
	Disposes the peer. More...

Protected Member Functions
virtual void	HandleRegisterGameServerResponse (OperationResponse operationResponse)

virtual void	OnRegisteredAtMaster (RegisterGameServerResponse registerResponse)

override void	OnDisconnect (DisconnectReason reasonCode, string reasonDetail)
	The connection was closed. More...

override void	OnEvent (IEventData eventData, SendParameters sendParameters)
	Called when an EventData was received. More...

override void	OnOperationRequest (OperationRequest request, SendParameters sendParameters)
	Incoming OperationRequests are handled here. This method is being enqueued on the PeerBase.RequestFiber. More...

override void	OnOperationResponse (OperationResponse operationResponse, SendParameters sendParameters)
	Called when an OperationResponse was received. More...

void	Reconnect (IPAddress address)

virtual void	Register ()

void	StartUpdateLoop ()

void	StopUpdateLoop ()

override void	OnConnectionEstablished (object responseObject)

override void	OnConnectionFailed (int errorCode, string errorMessage)

Protected Member Functions inherited from Photon.SocketServer.ServerToServer.OutboundS2SPeer
	OutboundS2SPeer (ApplicationBase application)

Protected Member Functions inherited from Photon.SocketServer.ServerToServer.S2SPeerBase
	S2SPeerBase (InitResponse response)
	Initializes a new instance of the S2SPeerBase class. More...

override void	OnReceive (byte[] data, SendParameters sendParameters)
	Invoked if incoming data was received for the peer. More...

virtual void	OnInitializeEcryptionCompleted (short resultCode, string debugMessage)
	Invoked if an initialize encryption request was completed. More...

Protected Member Functions inherited from Photon.SocketServer.PeerBase
void	Trace (bool enabled, object tag)

virtual SendResult	SendData (byte[] data, SendParameters sendParameters)
	Sends bytes to the client. More...

virtual void	Dispose (bool disposing)
	Disposes the internal fibers. More...

virtual void	OnSendBufferEmpty ()
	The default behavior of OnSendBufferFull is to disconnect the client. If this behavior is changed (override) the inheritor can pause sending until OnSendBufferEmpty is called. More...

virtual void	OnUnexpectedDataReceived (byte[] data, string debugMessage)
	This method is called if incoming data has an unexpected format. Per default this method disconnects the client. Override to change this behavior. More...

Properties
bool	IsRegistered `[get, protected set]`

Properties inherited from Photon.SocketServer.PeerBase
ConnectionState	ConnectionState `[get, set]`
	Gets the ConnectionState for this instance. More...

bool	Connected `[get]`
	Gets a value indicating whether this PeerBase instance is connected. More...

int	ConnectionId `[get]`
	Gets the connection id. More...

bool	Disposed `[get]`
	Gets a value indicating whether the peer was disposed. More...

string	LocalIP `[get]`
	Gets the IP the client connects to. More...

IPAddress?	LocalIPAddress `[get]`
	Gets the IP Address the client connects to. More...

int	LocalPort `[get]`
	Gets the port the client connects to. More...

NetworkProtocolType	NetworkProtocol `[get]`
	Gets the network protocol type used by the peer. More...

IRpcProtocol	Protocol `[get, set]`
	Gets the used IRpcProtocol protocol. More...

string	RemoteIP `[get]`
	Gets the client's remote IP address. More...

IPAddress?	RemoteIPAddress `[get]`
	Gets the client's remote IP address. More...

int	RemotePort `[get]`
	Gets the port the client connects from. More...

IFiber	RequestFiber `[get]`
	Gets fiber for incoming messages. More...

int	RoundTripTime `[get, protected set]`
	Gets the last round trip time for this peer. More...

int	RoundTripTimeVariance `[get, protected set]`
	Gets the last round trip time variance for this peer. More...

int	NumFailures `[get, protected set]`

bool	LocalIPAddressIsIPv6 `[get]`
	If true connection is using a server IPv6 endpoint. More...

bool	SourceUsingIPv6 `[get]`
	If true the peer is using IPv6 to connect to the server, if the server enpoint used is not IPv6 (LocalIPAddressIsIPv6) it means the client is beeing bridged (DNS64+NAT64), also IsIPv6ToIPv4Bridged. More...

bool	IsIPv6ToIPv4Bridged `[get]`
	If true the client is beeing bridged (DNS64+NAT64), also SourceUsingIPv6. More...

Additional Inherited Members
Static Public Attributes inherited from Photon.SocketServer.ServerToServer.OutboundS2SPeer
static readonly IRpcProtocol	DefaultProtocol = GpBinaryByteProtocolV16.HeaderV2Instance

Constructor & Destructor Documentation

◆ OutgoingMasterServerPeer()

Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.OutgoingMasterServerPeer ( MasterServerConnectionBase masterServerConnection )

inline

Member Function Documentation

◆ HandleRegisterGameServerResponse()

virtual void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.HandleRegisterGameServerResponse ( OperationResponse operationResponse )

inlineprotectedvirtual

◆ OnConnectionEstablished()

override void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.OnConnectionEstablished ( object responseObject )

inlineprotectedvirtual

Implements Photon.SocketServer.ServerToServer.OutboundS2SPeer.

◆ OnConnectionFailed()

override void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.OnConnectionFailed	(	int	errorCode,
		string	errorMessage
	)

inlineprotectedvirtual

Implements Photon.SocketServer.ServerToServer.OutboundS2SPeer.

◆ OnDisconnect()

override void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.OnDisconnect	(	DisconnectReason	reasonCode,
		string	reasonDetail
	)

inlineprotectedvirtual

The connection was closed.

Implements Photon.SocketServer.PeerBase.

◆ OnEvent()

override void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.OnEvent	(	IEventData	eventData,
		SendParameters	sendParameters
	)

inlineprotectedvirtual

Called when an EventData was received.

Parameters

eventData	The event data.
sendParameters	The send Parameters.

Implements Photon.SocketServer.ServerToServer.S2SPeerBase.

◆ OnOperationRequest()

override void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.OnOperationRequest	(	OperationRequest	operationRequest,
		SendParameters	sendParameters
	)

inlineprotectedvirtual

Incoming OperationRequests are handled here. This method is being enqueued on the PeerBase.RequestFiber.

Parameters

operationRequest	The operation Request.
sendParameters	The send parameters.

Implements Photon.SocketServer.PeerBase.

◆ OnOperationResponse()

override void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.OnOperationResponse	(	OperationResponse	operationResponse,
		SendParameters	sendParameters
	)

inlineprotectedvirtual

Called when an OperationResponse was received.

Parameters

operationResponse	The operation response.
sendParameters	The send Parameters.

Implements Photon.SocketServer.ServerToServer.S2SPeerBase.

◆ OnRegisteredAtMaster()

virtual void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.OnRegisteredAtMaster ( RegisterGameServerResponse registerResponse )

inlineprotectedvirtual

◆ Reconnect()

void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.Reconnect ( IPAddress address )

inlineprotected

◆ Register()

virtual void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.Register ( )

inlineprotectedvirtual

◆ StartUpdateLoop()

void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.StartUpdateLoop ( )

inlineprotected

◆ StopUpdateLoop()

void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.StopUpdateLoop ( )

inlineprotected

◆ UpdateServerState() [1/2]

void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.UpdateServerState ( )

inline

◆ UpdateServerState() [2/2]

void Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.UpdateServerState	(	FeedbackLevel	workload,
		int	peerCount,
		ServerState	state
	)

inline

Property Documentation

◆ IsRegistered

bool Photon.LoadBalancing.GameServer.OutgoingMasterServerPeer.IsRegistered

getprotected set
