The server peer base. More...

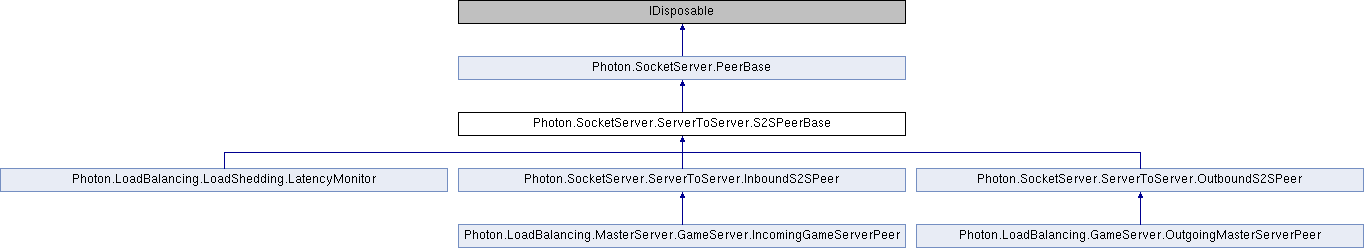

Inheritance diagram for Photon.SocketServer.ServerToServer.S2SPeerBase:

Public Member Functions
SendResult	InitializeEncryption ()
	Initializes the peer to receive and send encrypted operations. More...

SendResult	SendOperationRequest (OperationRequest operationRequest, SendParameters sendParameters)
	Sends an operation request. More...

Public Member Functions inherited from Photon.SocketServer.PeerBase
void	Initialize (InitRequest initRequest)

override string	ToString ()

void	Disconnect ()
	Closes the connection. More...

void	AbortConnection ()
	Forces the connection to close immediately. Should only be used if "Disconnect" does not lead to a clean connection shutdown, e.g. in case of an overloaded connection. More...

void	Flush ()
	Flushes all pending data to the socket. More...

byte[]	InitializeEncryption (byte[] otherPartyPublicKey)
	Initializes the peer to receive and send encrypted operations with EncryptionMethod.Sha256Pkcs7. More...

byte[]	InitializeEncryption (byte[] otherPartyPublicKey, EncryptionMethod mode)
	Initializes the peer to receive and send encrypted operations. More...

SendResult	SendEvent (IEventData eventData, SendParameters sendParameters)
	Sends an IEventData object to the client. More...

SendResult	SendMessage (object message, SendParameters sendParameters)

SendResult	SendOperationResponse (OperationResponse operationResponse, SendParameters sendParameters)
	Sends the operation response to the client. More...

void	GetStats (out int roundTripTime, out int roundTripTimeVariance, out int numFailures)

void	SetDebugString (string message)

int	GetLastTouch ()

void	SetPrivateCustomTypeCache (CustomTypeCache cache)
	Sets private custom type cache. It is supposed to be used together with plugins. In other case Proptocol.TryRegisterCustomType should be used More...

void	Dispose ()
	Disposes the peer. More...

Protected Member Functions
	S2SPeerBase (InitResponse response)
	Initializes a new instance of the S2SPeerBase class. More...

override void	OnReceive (byte[] data, SendParameters sendParameters)
	Invoked if incoming data was received for the peer. More...

virtual void	OnInitializeEcryptionCompleted (short resultCode, string debugMessage)
	Invoked if an initialize encryption request was completed. More...

Protected Member Functions inherited from Photon.SocketServer.PeerBase
void	Trace (bool enabled, object tag)

virtual SendResult	SendData (byte[] data, SendParameters sendParameters)
	Sends bytes to the client. More...

virtual void	Dispose (bool disposing)
	Disposes the internal fibers. More...

abstract void	OnDisconnect (DisconnectReason reasonCode, string reasonDetail)
	The connection was closed. More...

virtual void	OnSendBufferEmpty ()
	The default behavior of OnSendBufferFull is to disconnect the client. If this behavior is changed (override) the inheritor can pause sending until OnSendBufferEmpty is called. More...

virtual void	OnUnexpectedDataReceived (byte[] data, string debugMessage)
	This method is called if incoming data has an unexpected format. Per default this method disconnects the client. Override to change this behavior. More...

Additional Inherited Members
Properties inherited from Photon.SocketServer.PeerBase
ConnectionState	ConnectionState `[get, set]`
	Gets the ConnectionState for this instance. More...

bool	Connected `[get]`
	Gets a value indicating whether this PeerBase instance is connected. More...

int	ConnectionId `[get]`
	Gets the connection id. More...

bool	Disposed `[get]`
	Gets a value indicating whether the peer was disposed. More...

string	LocalIP `[get]`
	Gets the IP the client connects to. More...

IPAddress?	LocalIPAddress `[get]`
	Gets the IP Address the client connects to. More...

int	LocalPort `[get]`
	Gets the port the client connects to. More...

NetworkProtocolType	NetworkProtocol `[get]`
	Gets the network protocol type used by the peer. More...

IRpcProtocol	Protocol `[get, set]`
	Gets the used IRpcProtocol protocol. More...

string	RemoteIP `[get]`
	Gets the client's remote IP address. More...

IPAddress?	RemoteIPAddress `[get]`
	Gets the client's remote IP address. More...

int	RemotePort `[get]`
	Gets the port the client connects from. More...

IFiber	RequestFiber `[get]`
	Gets fiber for incoming messages. More...

int	RoundTripTime `[get, protected set]`
	Gets the last round trip time for this peer. More...

int	RoundTripTimeVariance `[get, protected set]`
	Gets the last round trip time variance for this peer. More...

int	NumFailures `[get, protected set]`

bool	LocalIPAddressIsIPv6 `[get]`
	If true connection is using a server IPv6 endpoint. More...

bool	SourceUsingIPv6 `[get]`
	If true the peer is using IPv6 to connect to the server, if the server enpoint used is not IPv6 (LocalIPAddressIsIPv6) it means the client is beeing bridged (DNS64+NAT64), also IsIPv6ToIPv4Bridged. More...

bool	IsIPv6ToIPv4Bridged `[get]`
	If true the client is beeing bridged (DNS64+NAT64), also SourceUsingIPv6. More...

Detailed Description

The server peer base.

Constructor & Destructor Documentation

◆ S2SPeerBase()

Photon.SocketServer.ServerToServer.S2SPeerBase.S2SPeerBase ( InitResponse response )

inlineprotected

Initializes a new instance of the S2SPeerBase class.

Member Function Documentation

◆ InitializeEncryption()

SendResult Photon.SocketServer.ServerToServer.S2SPeerBase.InitializeEncryption ( )

inline

Initializes the peer to receive and send encrypted operations.

Returns: Returns SendResult.Ok if the event was successfully sent; otherwise an error value. See SendResult for more information.

◆ OnInitializeEcryptionCompleted()

virtual void Photon.SocketServer.ServerToServer.S2SPeerBase.OnInitializeEcryptionCompleted	(	short	resultCode,
		string	debugMessage
	)

inlineprotectedvirtual

Invoked if an initialize encryption request was completed.

Parameters

resultCode	The result code.
debugMessage	The debuf message.

◆ OnReceive()

override void Photon.SocketServer.ServerToServer.S2SPeerBase.OnReceive	(	byte[]	data,
		SendParameters	sendParameters
	)

inlineprotectedvirtual

Invoked if incoming data was received for the peer.

Parameters

data	An array of type Byte containing the received data.
sendParameters	A SendParameters instance specifying how the data was send.

Can be overridden in a derived class to implement a custom request handling. The default implementation tries to parse the data as an OperationRequest and invokes the OnOperationRequest method of this instance.

Reimplemented from Photon.SocketServer.PeerBase.

◆ SendOperationRequest()

SendResult Photon.SocketServer.ServerToServer.S2SPeerBase.SendOperationRequest	(	OperationRequest	operationRequest,
		SendParameters	sendParameters
	)

inline

Sends an operation request.

Parameters

operationRequest	The operation request.
sendParameters	The send Options.

Returns: SendResult.EncryptionNotSupported: Encryption not initialized. SendResult.Disconnected: Not connected anymore. SendResult.SendBufferFull: The send buffer was full. SendResult.Ok: Success.
