ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter Class Reference

Graphite text protocol writer http://graphite.wikidot.com/getting-your-data-into-graphite metric_path value timestamp
More...

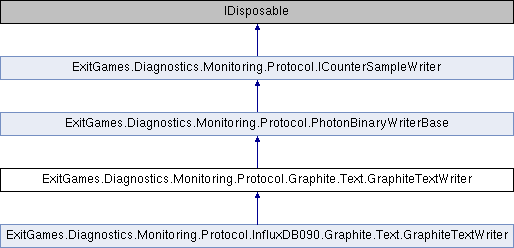

Inheritance diagram for ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter:

Public Member Functions
	GraphiteTextWriter (int maxQueueLength, ISocketSender socket)
	GraphiteTextWriter (int minPayloadSize, int maxPayloadSize, int serializationBufferSize, int maxQueueLength, ISocketSender socket)
	GraphiteTextWriter (PacketWriterSettings s)
override void	Publish (CounterSampleCollection[] packages)
	Called by CounterSampleSenderBase to write samples out to some storage. More...
virtual string	GetKey (CounterSampleCollection c)
virtual void	Serialize (StreamWriter w, string key, CounterSample s)
Public Member Functions inherited from ExitGames.Diagnostics.Monitoring.Protocol.PhotonBinaryWriterBase
virtual void	Start (CounterSampleSenderBase sender)
	Start writing. Stop is handled by IDisposable implementation. Can be called once. More...
void	Dispose ()
void	EnqueueData (byte[] data)

Static Public Member Functions
static TimeSpan	GetUnixTimestamp (DateTime dt)
Static Public Member Functions inherited from ExitGames.Diagnostics.Monitoring.Protocol.PhotonBinaryWriterBase
static ISocketSender	CreateSender (CounterSampleSenderSettings s)

Static Public Attributes
static readonly DateTime	Epoch = new DateTime(1970, 1, 1)
const char	Separator = '.'
Static Public Attributes inherited from ExitGames.Diagnostics.Monitoring.Protocol.PhotonBinaryWriterBase
const int	DefaultMaxQueueLength = 120

Additional Inherited Members
Public Attributes inherited from ExitGames.Diagnostics.Monitoring.Protocol.PhotonBinaryWriterBase
readonly int	MaxQueueLength = DefaultMaxQueueLength
	Gets a value indicating how many packages should be enqueued for republishing if an error occurred during publishing. The default value is 120. More...
readonly LinkedList< byte[]>	SendQueue = new LinkedList<byte[]>()
Protected Member Functions inherited from ExitGames.Diagnostics.Monitoring.Protocol.PhotonBinaryWriterBase
	PhotonBinaryWriterBase (int maxQueueLength, ISocketSender socket)
	PhotonBinaryWriterBase (CounterSampleSenderSettings s)
virtual void	Dispose (bool disposing)
Properties inherited from ExitGames.Diagnostics.Monitoring.Protocol.PhotonBinaryWriterBase
int	QueuedDataSize [get]
	Gets the size of the queued data in bytes. More...
bool	Ready [get]
string	SenderId [get]
Properties inherited from ExitGames.Diagnostics.Monitoring.Protocol.ICounterSampleWriter
bool	Ready [get]
	Is writer ready to publish any data. IsConnected status is subset of this status. Default implementation is writer started and connected. More...

Detailed Description

Graphite text protocol writer http://graphite.wikidot.com/getting-your-data-into-graphite metric_path value timestamp

So for example, "foo.bar.baz 42 74857843" where the last number is a UNIX epoch time.

Constructor & Destructor Documentation

GraphiteTextWriter() [1/3]

ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter.GraphiteTextWriter ( int  maxQueueLength, ISocketSender  socket  )

inline

GraphiteTextWriter() [2/3]

ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter.GraphiteTextWriter ( int  minPayloadSize, int  maxPayloadSize, int  serializationBufferSize, int  maxQueueLength, ISocketSender  socket  )

inline

GraphiteTextWriter() [3/3]

ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter.GraphiteTextWriter ( PacketWriterSettings  s )

inline

Member Function Documentation

GetKey()

virtual string ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter.GetKey ( CounterSampleCollection  c )

inlinevirtual

Reimplemented in ExitGames.Diagnostics.Monitoring.Protocol.InfluxDB090.Graphite.Text.GraphiteTextWriter.

GetUnixTimestamp()

static TimeSpan ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter.GetUnixTimestamp ( DateTime  dt )

inlinestatic

Publish()

override void ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter.Publish ( CounterSampleCollection[]  packages )

inlinevirtual

Called by CounterSampleSenderBase to write samples out to some storage.

Reimplemented from ExitGames.Diagnostics.Monitoring.Protocol.PhotonBinaryWriterBase.

Serialize()

virtual void ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter.Serialize ( StreamWriter  w, string  key, CounterSample  s  )

inlinevirtual

Member Data Documentation

Epoch

readonly DateTime ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter.Epoch = new DateTime(1970, 1, 1)

static

Separator

const char ExitGames.Diagnostics.Monitoring.Protocol.Graphite.Text.GraphiteTextWriter.Separator = '.'

static
